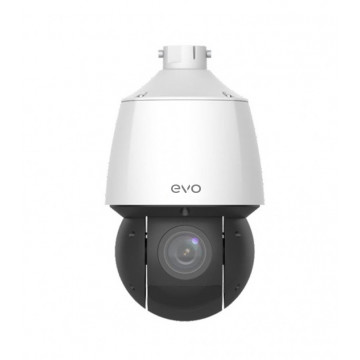

| | IPC-6413-X20K |
| Camera |
| Sensor | 1/2.8", 3.0 megapixel, progressive scan, CMOS |
| Min. Illumination | Colour: 0.003 Lux (F1.7, AGC ON)
0 Lux with IR |
| Day/Night | IR-cut filter with auto switch (ICR) |
| Shutter | Auto/Manual, 1 ~ 1/100000s |
| WDR | 120dB |
| S/N | >52dB |
| Lens |
| Lens type | 5 ~ 100mm, AF automatic focusing and motorized zoom lens |
| Optical Zoom | 20 |
| Iris | Fixed; F1.7 ~ F2.8 |
| Angle of View (H) | 51.70° ~ 3.85° |
| Angle of View (V) | 30.49° ~ 2.16° |
| Angle of View (O) | 63.60° ~ 4.54° |
| DORI |
| DORI Distance | Lens (mm) | Detect (m) | Observe (m) | Recognize (m) | Identify (m) |
| 5 | 77.6 (254.5ft) | 31.0 (101.8ft) | 15.5 (50.9ft) | 7.8 (25.5ft) |
| 100 | 1551.7 (5091.0ft) | 620.7 (2036.4ft) | 310.3 (1018.2ft) | 155.2 (509.1ft) |
| Illuminator |
| IR Range | Up to 100m (328 ft) IR range |
| Wavelength | 850nm |
| IR On/Off Control | Auto/Manual |
| Video |
| Video Compression | H.265, H.264, MJPEG |
| Frame Rate | Main Stream: 3MP (2304*1296), Max 30fps;
Sub Stream: 720P (1280*720), Max 30fps;
Third Stream: D1 (720*576), Max 30fps; |
| Video Bit Rate | 128 Kbps~16 Mbps |
| ROI | Support |
| Video Stream | Triple streams |
| OSD | Up to 8 OSDs |
| Privacy Mask | 24 areas, up to 4 areas per scene |
| Image |
| White Balance | Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 |
| Digital Noise Reduction | 2D/3D DNR |
| Smart IR | Support |
| Flip | Normal/Flip Vertical/Flip Horizontal/180° |
| HLC | Support |
| BLC | Support |
| Defog | Digital Defog |
| Events |
| Basic Detection | Motion detection, Tampering Alarm |
| Auto Tracking | Support |
| General Function | Watermark, IP Address Filtering, Access Policy, ARP Protection, RTSP Authentication, User Authentication |
| Storage |
| Edge Storage | Micro SD, up to 256 GB |
| Network Storage | ANR, NAS(NFS) |
| Network |
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP,SSL/TLS |
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API, SDK |
| User/Host | Up to 32 users. 3 user levels: administrator, operator and common user |
| Security | Password protection, Strong password, HTTPS encryption, Export operation logs, Basic and digest authentication for RTSP, Digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF |
| Client | Uniarch Client
Uniarch app |
| Web Browser | Plug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above |
| Pan & Tilt |
| Pan Range | 360° (endless) |
| Pan Speed | 0.1°/s ~ 80°/s |
| Preset speed: 80°/s |
| Tilt Range | –15° ~ 90° (auto reverse) |
| Tilt Speed | 0.1°/s ~ 80°/s |
| Preset speed: 80°/s |
| Number of Presets | 1024 |
| Preset Patrol | 16 patrols, up to 64 presets for each patrol |
| Route Patrol | 16 patrols, up to 32 actions for each patrol |
| Recorded Patrol | 16 patrols, up to 128 actions for each patrol |
| Patrol Stay Time | 15s ~ 1800s |
| Preset Image Freeze | N/A |
| Home Position | Support |
| Interface |
| Audio I/O | N/A |
| Alarm I/O | N/A |
| Serial Port | N/A |
| Built-in Mic | N/A |
| Built-in Speaker | N/A |
| Wi-Fi | N/A |
| Network | 1 * RJ45 10M/100M Base-TX Ethernet |
| Video Output | N/A |
| General |
| Power | DC12V (±25%), PoE+(IEEE 802.3at) |
| Power consumption: MAX 20W |
| Power Interface | Ø 5.5mm coaxial power plug |
| Dimensions (Ø x H) | Ø162 x 293mm (Ø6.4” x 11.5”) |
| Weight | 1.79kg (3.95lb) |
| Working Environment | -40℃ ~ 65℃ (-40°F ~ 149°F), Humidity: ≤95% RH (non-condensing) |
| Storage Environment | -40℃ ~ 70℃ (-40°F ~ 158°F), Humidity: ≤95% RH (non-condensing) |
| Surge Protection | 6KV |
| Reset Button | Support |
| Protection | Ingression protection: IP66 (IEC 60529:1989+AMD1:1999+AMD2:2013) |
