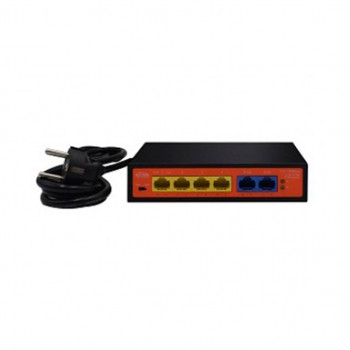

Wi-Tek WI-PS205H Неуправляемый коммутатор с функцией PoE

HARDWARE FEATURES

WI-PS205H

Hardware Version

V2

Interface

4 100Mbps RJ45 PoE Ports

2 100Mbps RJ45 Ports

Network Media

10Base-T: Pair 2 Category 3 (cat 3 ) and above UTP/ STP(≤100m)

100Base-TX: Pair 2 Category 5 (cat 5 ) and above UTP/ STP(≤100m)

1000BASE-TX: 6 Category and above UTP(≤150m)

Fan Quantity

Fanless

Power Supply

AC 100~240V 50/60HZ

PoE Standard

802.3 af/at compliant PoE

PoE Ports

Port 1-4

PoE Power Budget

40W

Mac Address Table

2k

Packet Forwarding Rate

0.89Mpps

umbo Frame

2kB

Protection Level

6kV Lightning protection

6kV ESD Contact discharge

SOFTWARE FEATURES

Transmission Method

Store-And-Forward

LED Indicator

PoE/Link/Power

DIP Switch

Default/CCTV

250m

Yes

Port VLAN

Yes

PoE Watchdog

Yes

Advanced Functions

Mac Address Auto- Learning

Auto-Aging Store and forward

IEEE 802.3x flow control for Full-duplex Mode

Backpressure for Half-duplex Mode

OTHERS

Certification

CE, FCC, RoHS

Package Dimension

195×165×60mm

Switch Dimension

40×75×30mm

Gross Weight

0.55kg

Net Weight

0.3kg

Package Contents

1 × PoE Switch

1 × Power Cord

1 × Quick Installation Guide
