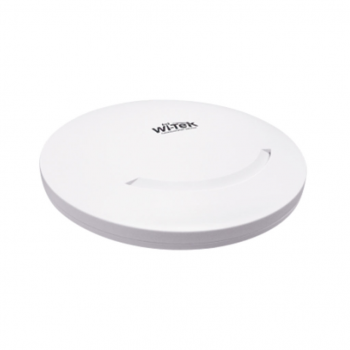

Wi-Tek WI-AP216 Точка доступа 1200Мбит/с

Ceiling Mount AP

Model

WI-AP216

Hardware Specifications

Wireless Standards

802.11ac Wave2

802.11n/b/g/a

Operating Bands

2.4GHz & 5GHz

Antenna

2.4GHz:4.6dBi, 5GHz: 4dBi

Spatial Steams

2.4GHz：2x2 MIMO 5GHz：2x2 MIMO

Signal Rate

Up to 300Mbps at 2.4G

Up to 867Mbps at 5G

Receiver Sensitivity

2.4GHz

802.11b: -85dBm@11Mbps -94dBm@1Mbps

802.11g: -72dBm@54Mbps -90dBm@6Mbps

802.11n HT20: -70dBm@MCS7 -88dBm@MCS0

802.11n HT40: -68dBmMCS7 -86dBm@MCS0

5GHz

802.11a: -72dBm@54Mbps -90dBm@6Mbps

802.11n HT20: -70dBm@MCS7 -88dBm@MCS0

802.11n HT40: -68dBm@MCS7 -86dBm@MCS0

802.11ac HT80: -58dBm@MCS9 -80dBm@MCS0

Maximum Transmit Power

<23dbm

Interface

(2)10/100MBase-T Ethernet ports

Power Supply

DC 12V/1A (Not Included)

802.3af PoE Supported

Power Consumption

< 10W

Installation

Wall/Ceiling Mounting

External buttons

reset button (long press for 6-10 seconds to restore the factory default configuration)

Dimensions

188mm * 188mm * 33mm

Environment

Normal operating temperature: -20°C to 55°C;

Extreme operating temperature -30°C to 70°C;

Storage temperature: -40°C to 70°C;

Humidity: 5%～95% (non-condensing)

Software Features

Operating Mode

Fit AP, Fat AP

Wireless Function

Up to 16 SSIDs

Support SSID hiding, Enable/Disable Wireless Radio

RF Parameter setting

Roaming

Support Layer 2 roaming

Wireless Security

Captive Portal Authentication

Static blacklist and whitelist

Wireless Isolation Between Clients

SSID to VLAN Mapping

802.1X Support

WPA/WPA2/PSK/WPA/WPA2-Enterprise

Routing

Support static IP, DHCP, PPPoE Dial Up
