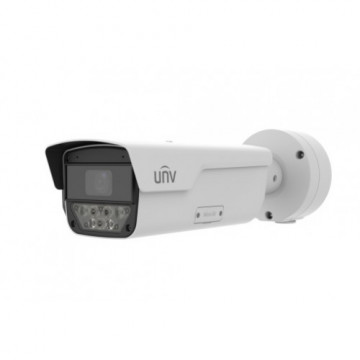

IPC264SA-AHDX4K-I1 |
Camera | |
Sensor | 1/1.8", 4.0 megapixel, progressive scan, CMOS |
Lens | 8~32mm@F1.6, AF automatic focusing and motorized zoom lens |
Iris | P-iris |
DORI Distance | Lens (mm) | Detect (m) | Observe (m) | Recognize (m) | Identify (m) |
8 | 165.7(543.7ft) | 66.3(217.5ft) | 33.1(108.7ft) | 16.6(54.4ft) |
32 | 444.4(1458.1ft) | 177.8(583.2ft) | 88.9(291.6ft) | 44.4(145.8ft) |
Field of View (H) | 42.6°~23.5° |
Field of View (V) | 15.2°~8.9° |
Field of View (D) | 52.4°~27.7° |
Shutter | Auto/Manual, 1 ~ 1/100000s |
Min. Illumination | Colour:0.0005lux (F1.6, AGC ON) 0 lux with Light |
WDR | 130dB |
Day/Night | IR-cut filter with auto switch (ICR) |
S/N | >56dB |
IR Range | Up to 120m (393.7 ft) |
Warm Light Range | Up to 30m (98.4 ft) |
Wavelength | 750nm |
Light On/Off Control | Auto/Manual |
Defog | Digital Defog |
Video |
Video Compression | Ultra 265,H.265,H.264,MJPEG |
Frame Rate | Main Stream: 4MP(2688*1520),Max 60fps; Sub Stream: 2MP(1920*1080), Max 60fps; Third Stream: D1 (720*576), Max 60fps |
Video Bit Rate | 128 Kbps~16 Mbps |
ROI | Up to 8 areas |
Video stream | Triple streams |
OSD | Up to 8 OSDs |
Privacy Mask | Up to 8 areas (8 blacks / 8 mosaics) |
Image |
White Balance | Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 |
Digital noise reduction | 2D/3D DNR |
Smart IR | Support |
Flip | Normal/Flip Vertical/Flip Horizontal/180°/90°Clockwise/90°Anti-clockwise |
HLC | Support |
BLC | Support |
Intelligent(Supported when frame rate is below 30) |
Traffic Monitoring | Support Capturing car license picture and collect other car information when the car passes tripwire Up to 4 lanes can be set Two types of application mode avaliable: High/Low pole |
Smart intrusion Prevention | Support false alarm filtering: Cross Line detection, Intrusion detection, Enter Area detection, Leave Area detection |
Statistical Analysis | People counting, support people flow counting and crowd density monitoring |
Event |
Basic Detection | Audio detection, Tampering Alarm, Motion detection |
General Function | Watermark, IP Address Filtering, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication |
Audio |
Audio Compression | G.711U,G.711A |
Two way audio | Supported |
Sampling Rate | 8,16KHZ |
Storage |
Edge Storage | Micro SD, up to 256 GB |
Network Storage | ANR,NAS(NFS) |
Network |
Protocols | IPv4, IPv6, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP |
Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API |
Client | EZStation Ezview EZLive |
Web Browser | Plug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above |
Interface |
Audio I/O | 2 Input: impedance 1kΩ±10%; amplitude 2.5V [p-p] |
1 Output: impedance 600Ω |
Alarm I/O | 3 Input |
2 Output: AC125V 0.5A / DC30V 1A |
Built-in MIC | Support, built-in mic*2 |
Built-in Speaker | Support |
Network | 1 x RJ45 10M/100M Base-TX Ethernet |
Serial Port | 1 RS485 |
Certifications |
EMC | CE-EMC (EN 55032: 2015+A1:2020,EN 61000-3-3: 2013+A1: 2019,EN IEC 61000-3-2: 2019+A1: 2021,EN 55035: 2017+A11:2020) FCC (FCC CFR 47 part15 B, ANSI C63.4-2014) |
Safety | CE LVD (EN 62368-1:2014+A11:2017) UL (UL 62368-1, 2nd Ed., Issue Date: 2014-12-01) |
Environment | CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006) |
Protection | IP67 (IEC 60529:1989+AMD1:1999+AMD2:2013) IK10 (IEC 62262:2002) |
General |
Power | DC12V(±25%), PoE+(IEEE802.3at) |
Power consumption: Max 23W |
Dimensions | 406 x 126 x 130mm(16.0” x 5.0” x 5.1”) |
Net Weight | 2.14kg(4.72lb) |
Built-in heater | Support |
Working Environment | -40°C ~60°C (-40°F ~ 140°F), Humidity: 5%~95% RH (non-condensing) |
Storage Environment | -40°C ~70°C (-40°F ~ 158°F), Humidity: 5%~95% RH (non-condensing) |
